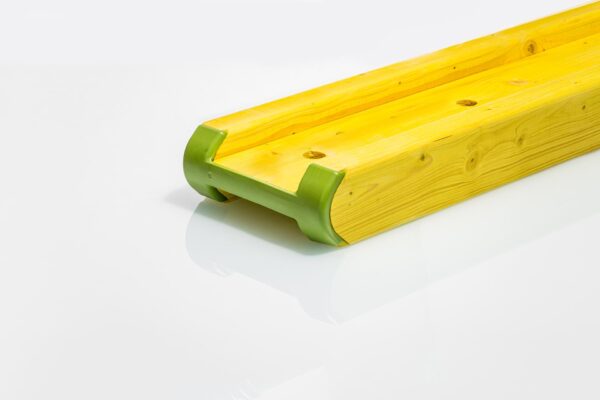

Formwork beam

Industrial pine formwork beams are designed for use in scaffolding and formwork.

They are used for mass construction of vertical (walls, columns) monolithic reinforced concrete structures and foundations.

Water-based impregnation r sheathing load-bearing beams and formwork with the formation of a protective film to protect against microbiological damage. Moisture and alkali resistant.

Use:

• Support beam in concrete formwork

Characteristics:

• Thickness: 27 mm
• Length: 190/245/265/290/330/360/390/450/490/590 mm
  • Special length up to 11900 mm
• Wood species: white wood
• Lifespan: 7+ years
• Shear resistance: Q = 11kN; modulus of elasticity: M = 5.0 kNm
• Weight: 4.50 kg/ml
• Moisture resistant adhesive
• Resistant to great shocks
