CLT (Cross-Laminated Timber)

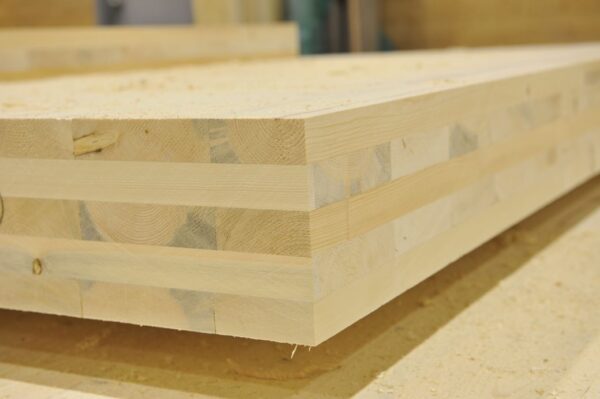

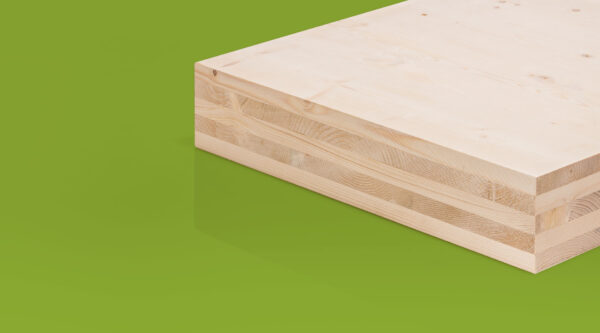

CLT – Cross-Laminated Timber – a wooden panel made of an odd number of layers (or “plies”) of lamellas glued together in perpendicular directions. The lamellas are made of coniferous SPF sawn timber – solid or finger-jointed ​​along the length.

Characteristics:

  • Species: spruce/fir/ pine and larch
  • Layers: 3-5-7
  • Thickness: 60 to 360 mm
  • Processing: planned

The maximum size of CLT panels is 18 m in length and 3.5 m in width.

Categories: ,



Layers Thickness mm. Plate construction
L1 L2 L3 L4 L5 L6 L7
3 60 20 20 20
3 80 20 40 20
3 90 30 30 30
3 100 30 40 30
3 120 40 40 40
5 100 20 20 20 20 20
5 120 30 20 20 20 30
5 140 40 20 20 20 40
5 160 40 20 40 20 40
5 180 40 30 40 30 40
5 200 40 40 40 40 40
5 220 20-40 30 40 30 40-20
5 240 40-40 20 40 20 40-40
5 260 40-40 30 40 30 40-40
5 280 40-40 40 40 40 40-40
5 300 40-40 30 40-40 30 40-40
5 320 40-40 40 40-40 40 40-40
7 280 20-40 40 20 40 20 40 40-20
7 340 40-40 40 30 40 30 40 40-40
7 360 40-40 40 40 40 40 40 40-40
